Theater/Design Studio 4

Architectural Design/Public Building

Location: Bangkok Dock Charoen Krung RD. Bangkok, Thailand

Building type: Theater+Leaning center

Area: 10,000 sq.m.

Project year: 3rd year design studio 4 in 2018

Research stage

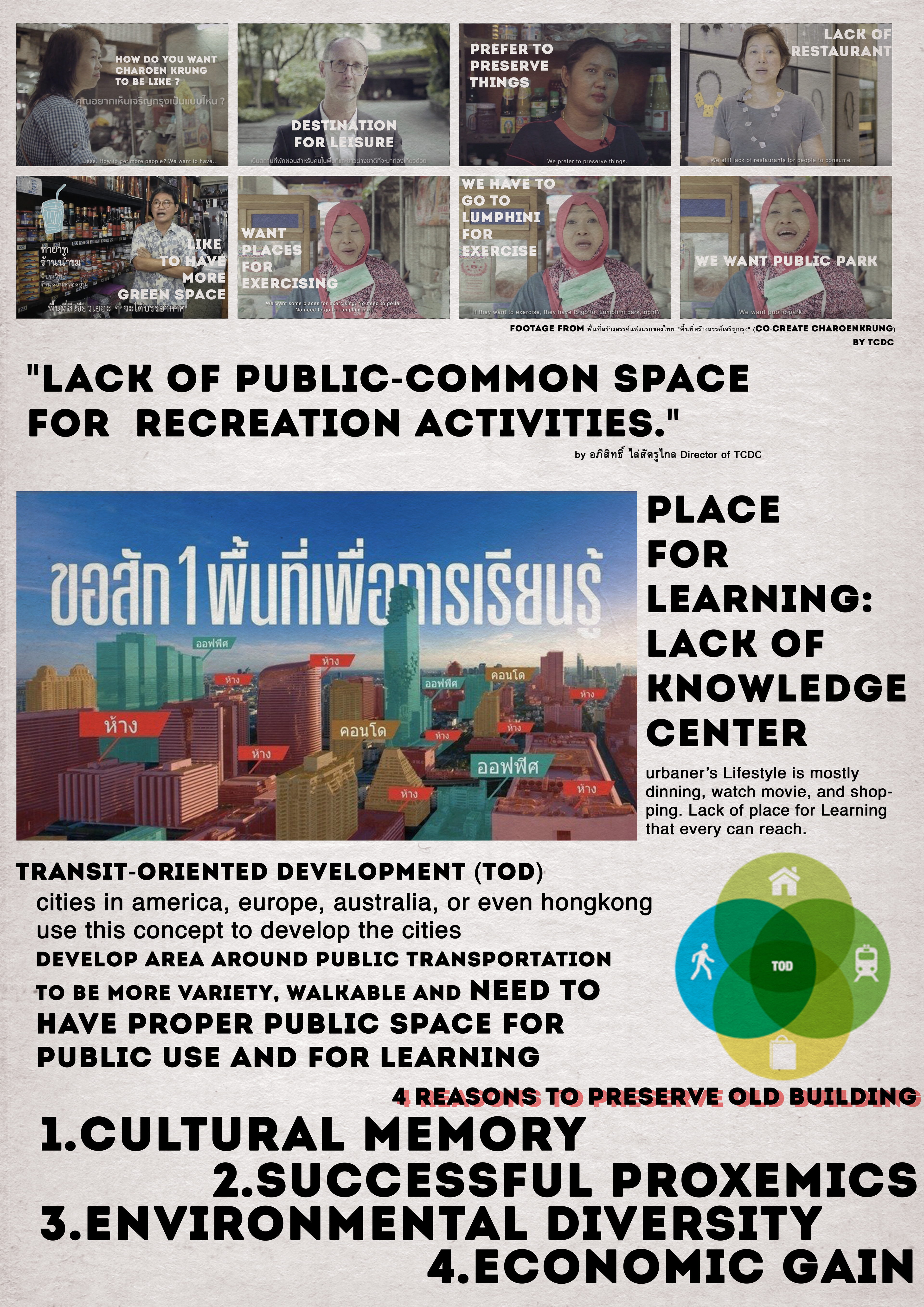

Issue

As the site located on the old Bangkok dock Chao-Phaya River and are in Creative district area. The creative district movement focus on driving the district into creative district by trying to RELIVE and REMAIN its(context) original characteristic. The Bangkok dock have its own valuable historical background and building (the boat warehouse and dock its self) so the designer try to preserve and enhance its characteristic of the old dock as well as provide space for knowledge cycle and linking the community nearby to the river to enhance relationship between people and river by offer the public program(public recreation space, park) according to the research that people in the community said "lack of public recreation space to express their creativity or even for recreation activity in daily life" so this approach is not just enhance quality of living in the community but also is the strategy to draw people into the commercial program and to make project vibrant.

Analysis

Site Existing

Site analysis

Program analysis

User analysis

Concept explore + Case study

1st Schematic Design

Sketches

Hand sketch and Sketch Model

Final Design

Plans

Ground floor plan

B2 Plan

B1 Plan

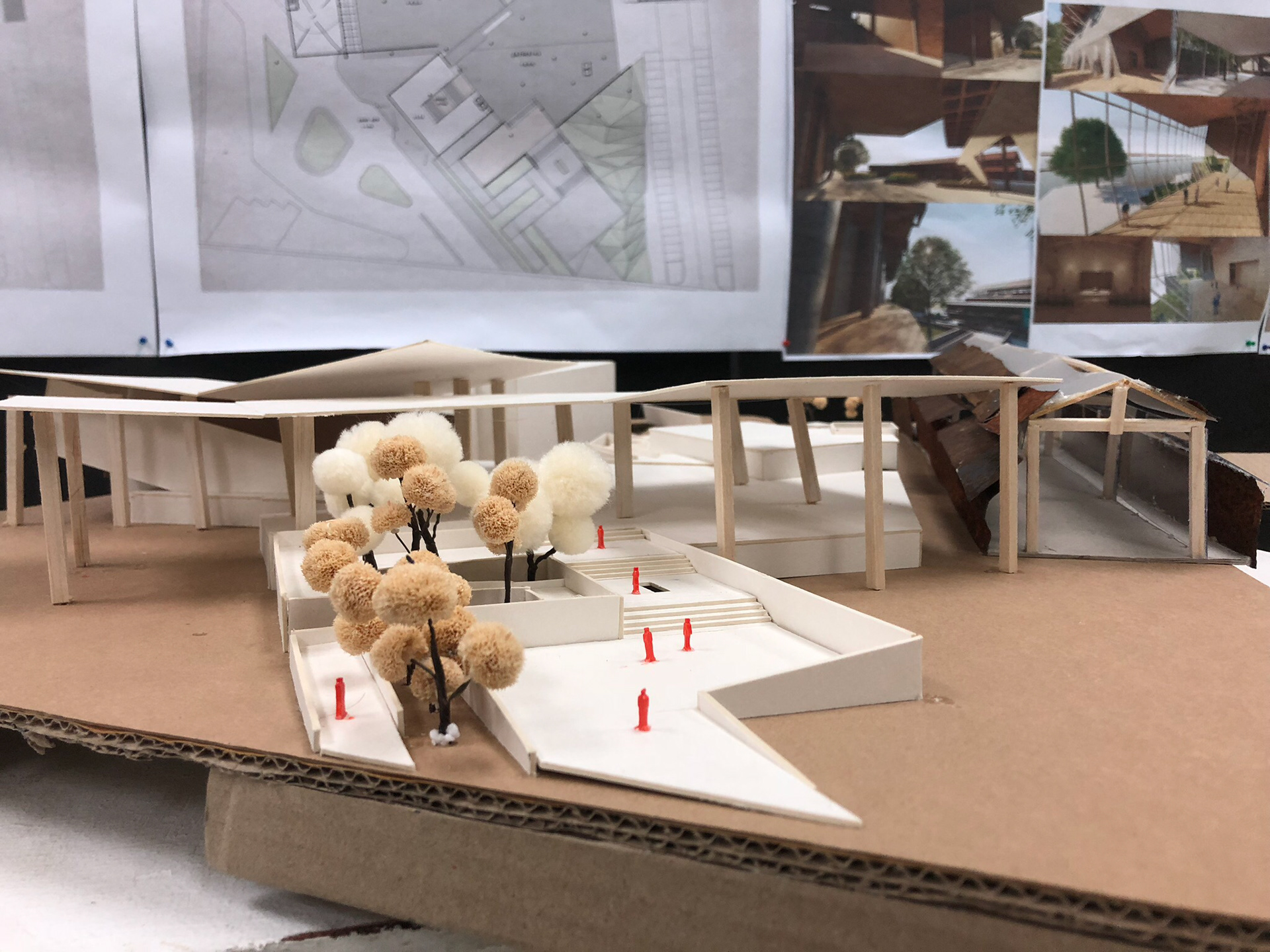

Model

Perspective

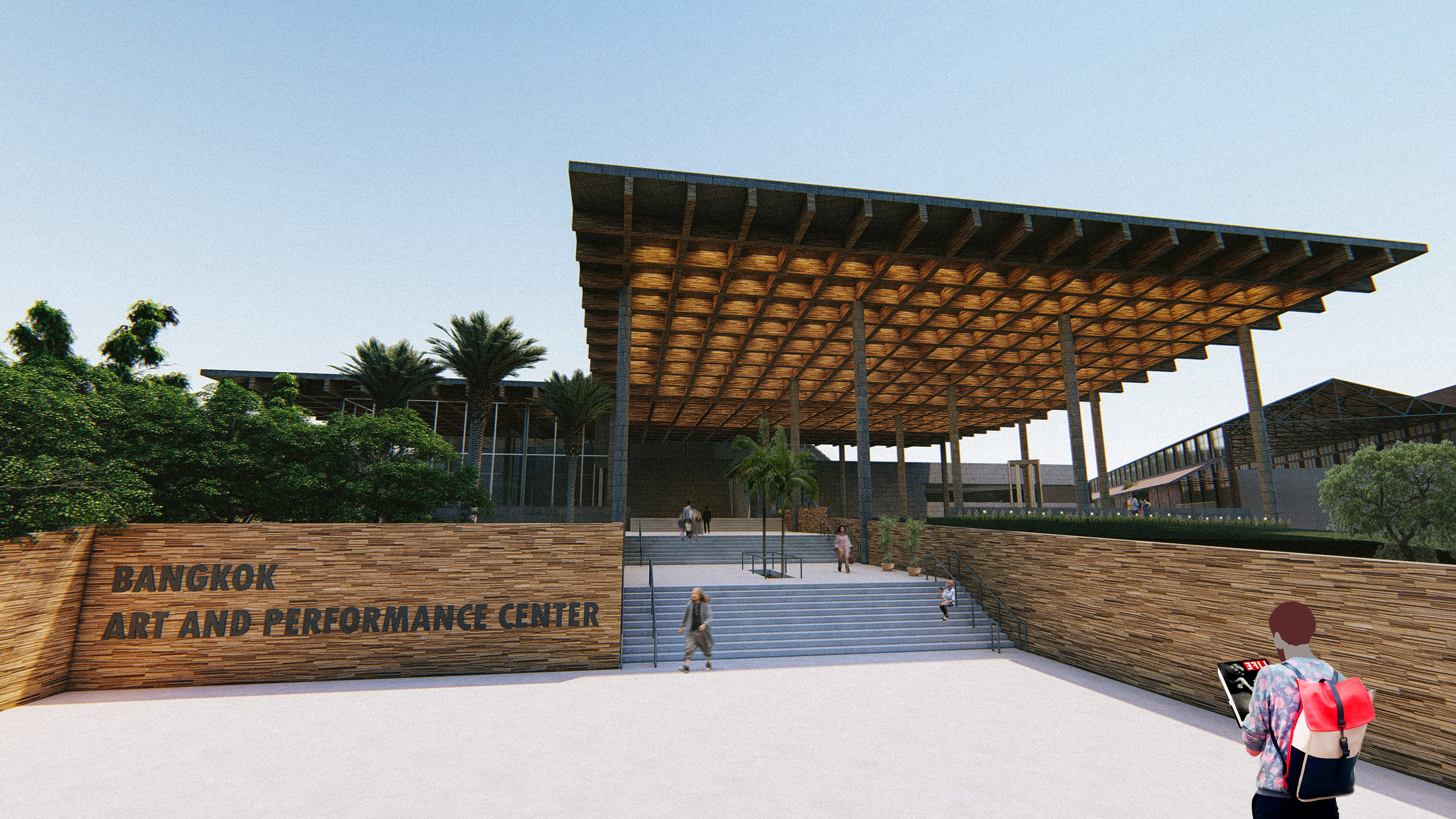

Public Entrance

Theater car park entrance

Theater Drop off

Ramp integrated with green

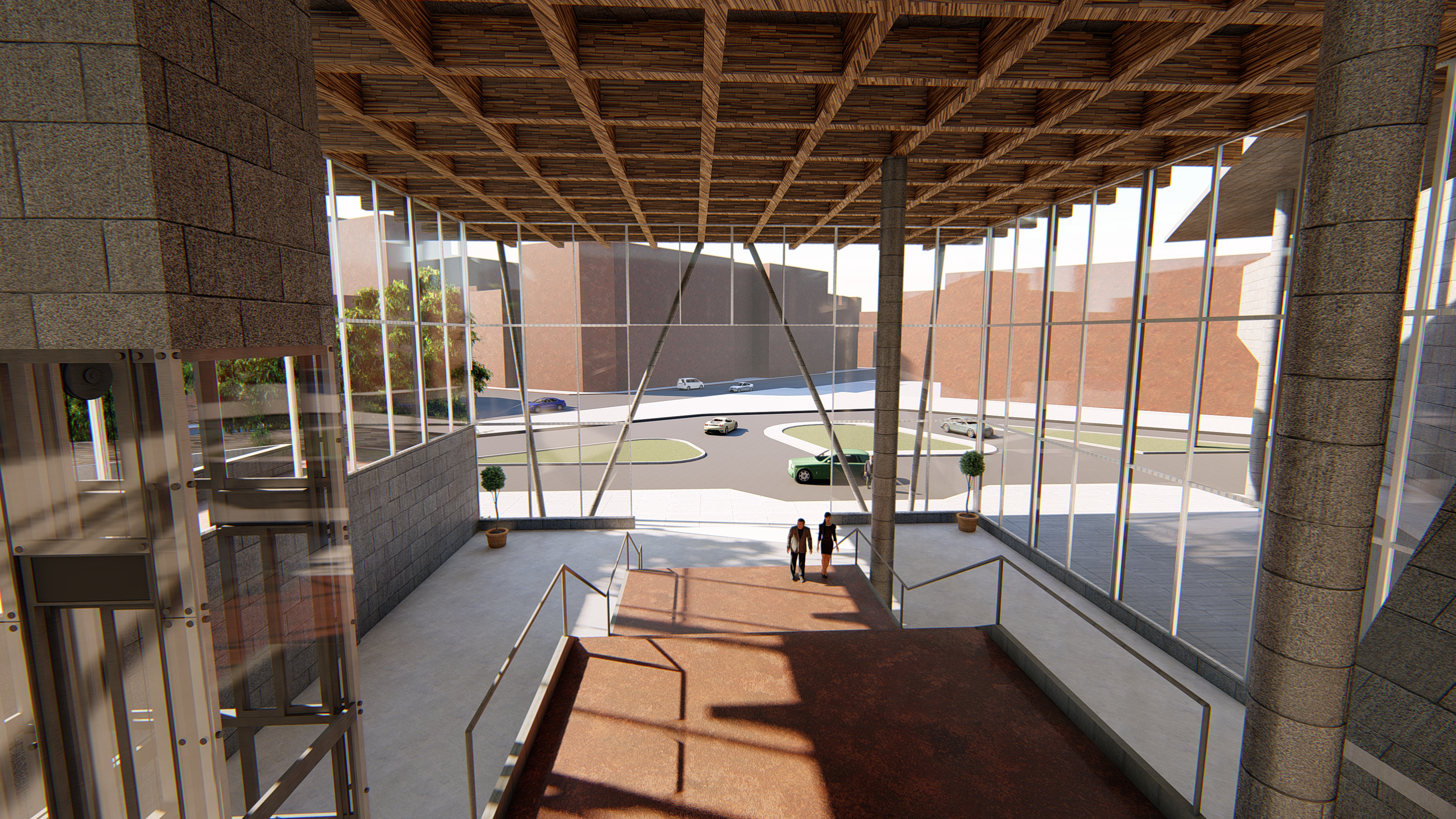

Main stair walk from drop off

Food court sunken in the old dock

Path to main Theater lobby

Knowledge center

Knowledge center lobby

Relive the old ware house and turn it to be the knowledge center, by remain its characteristic and main structure. Bring in the function boxes and circulation. Put the green area on the right wings of warehouse to reduce heat and the harsh feel of rustic iron.
